  View photos of ours retractable awning project

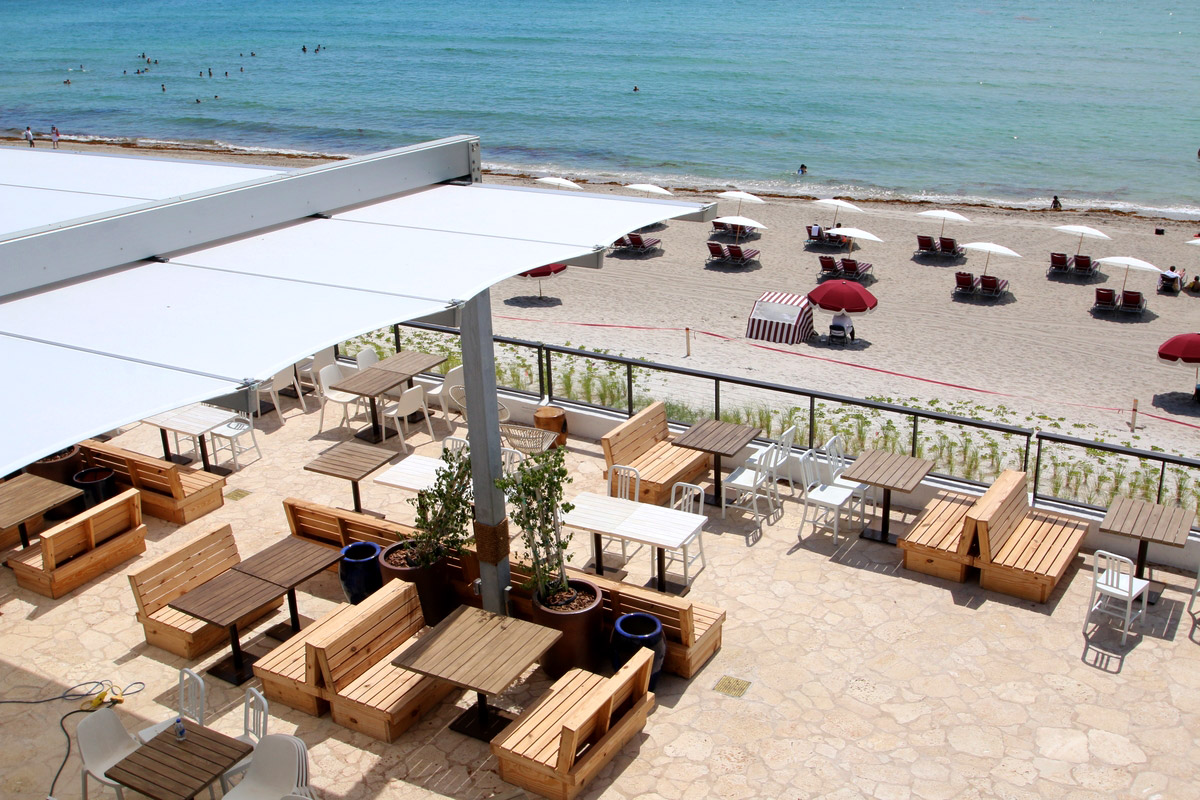

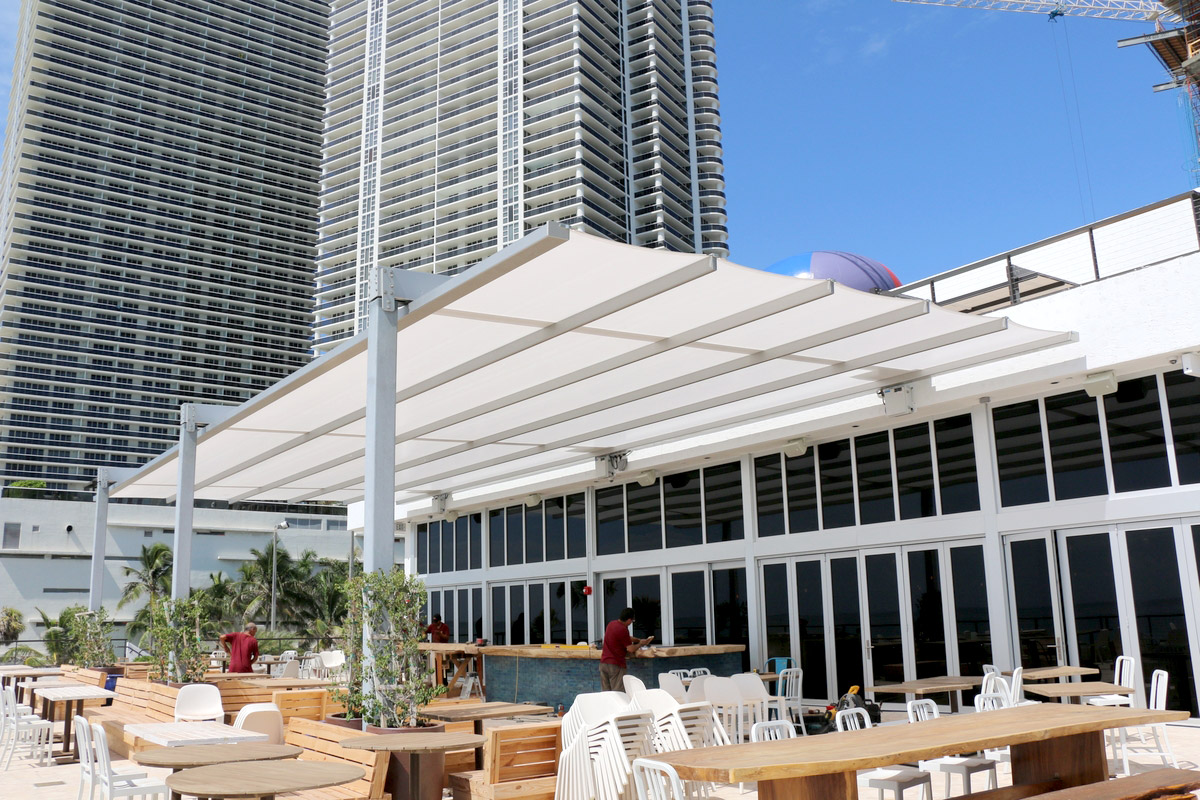

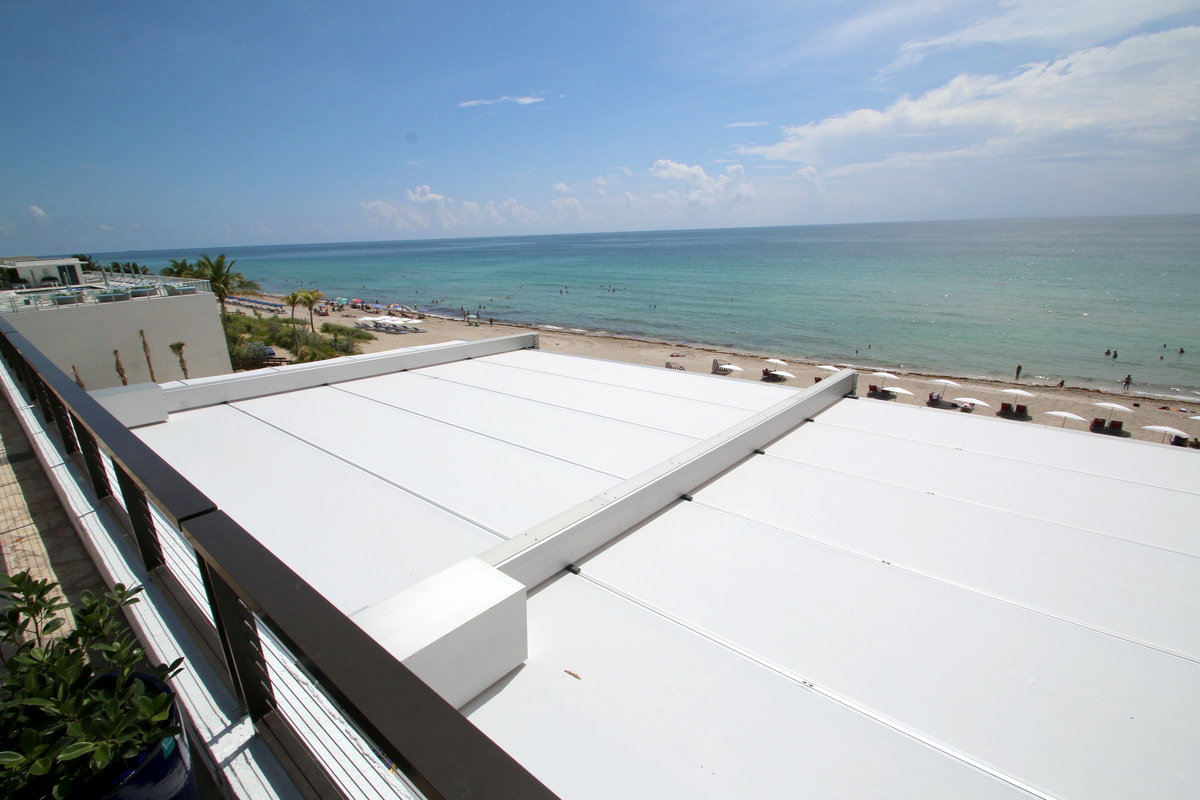

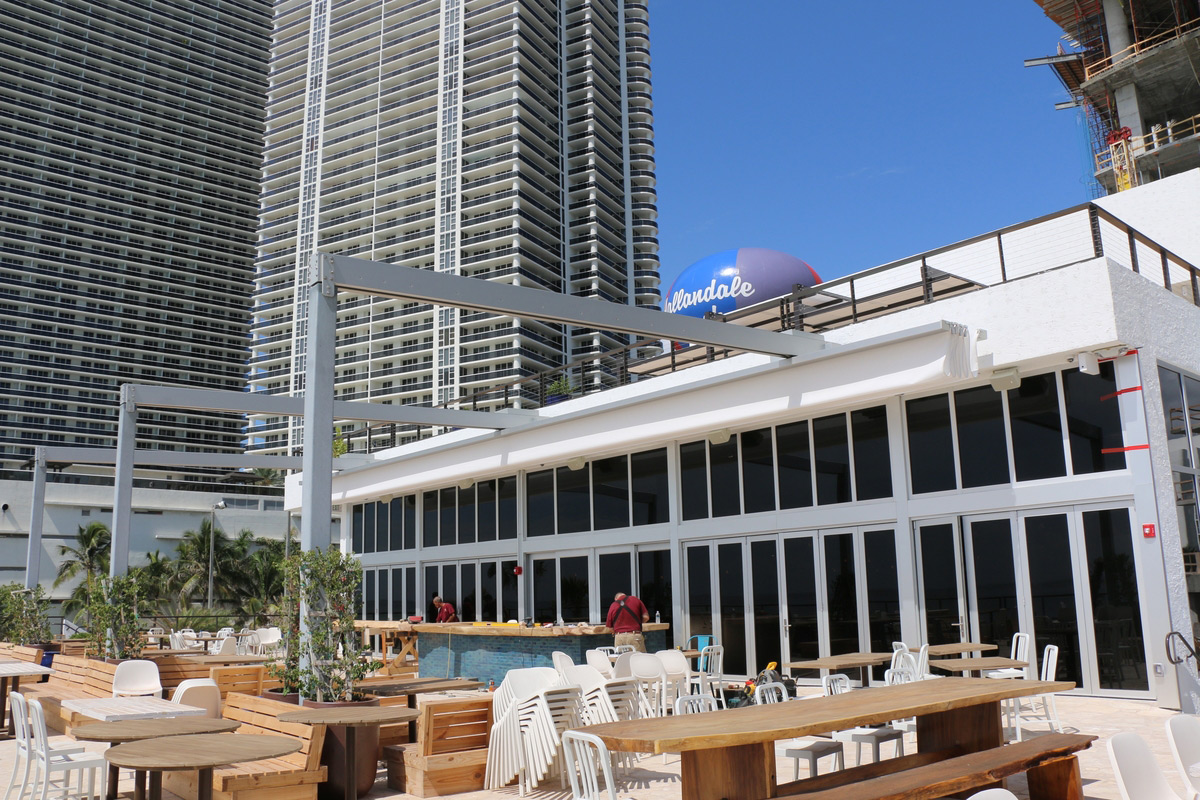

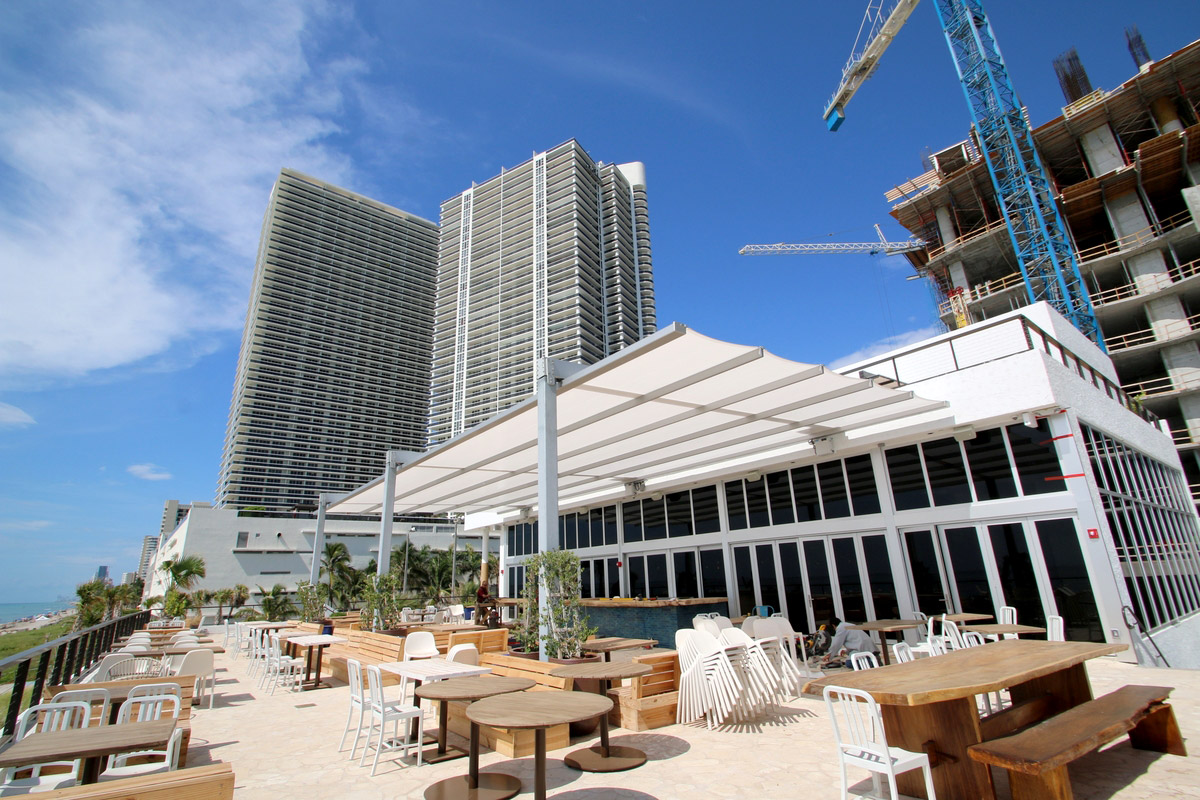

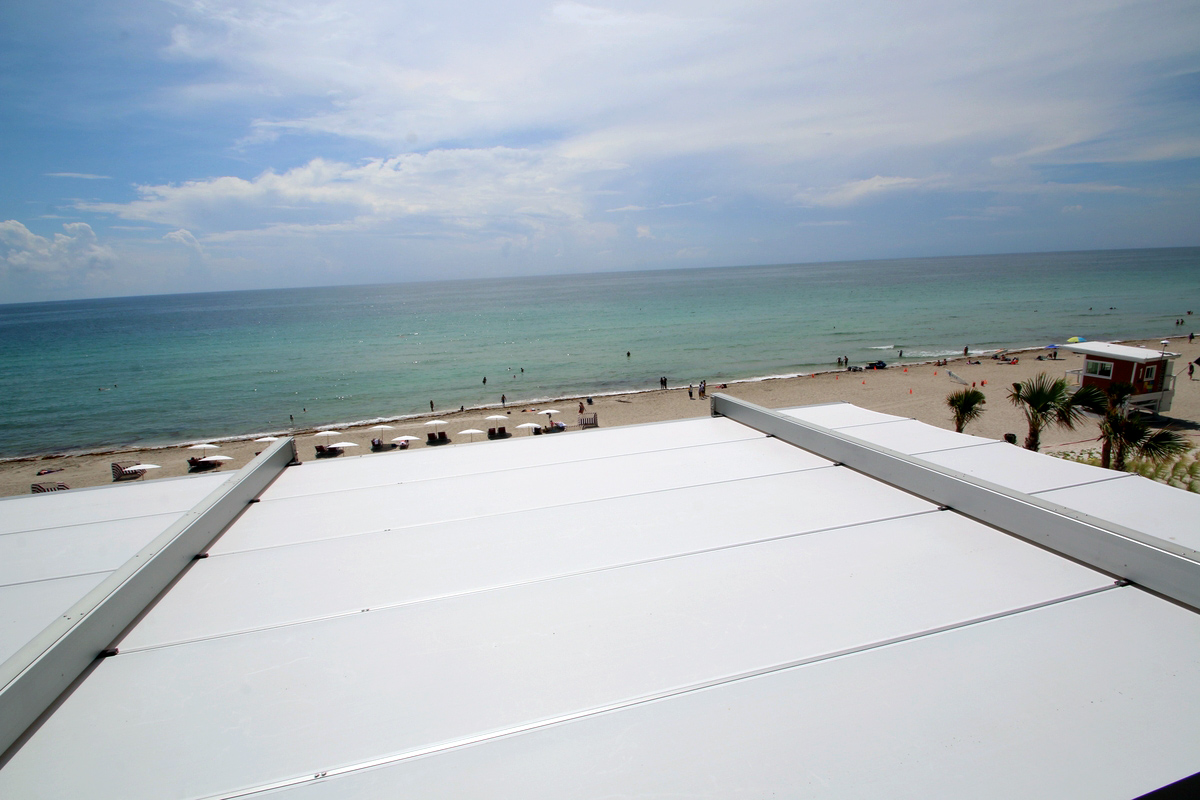

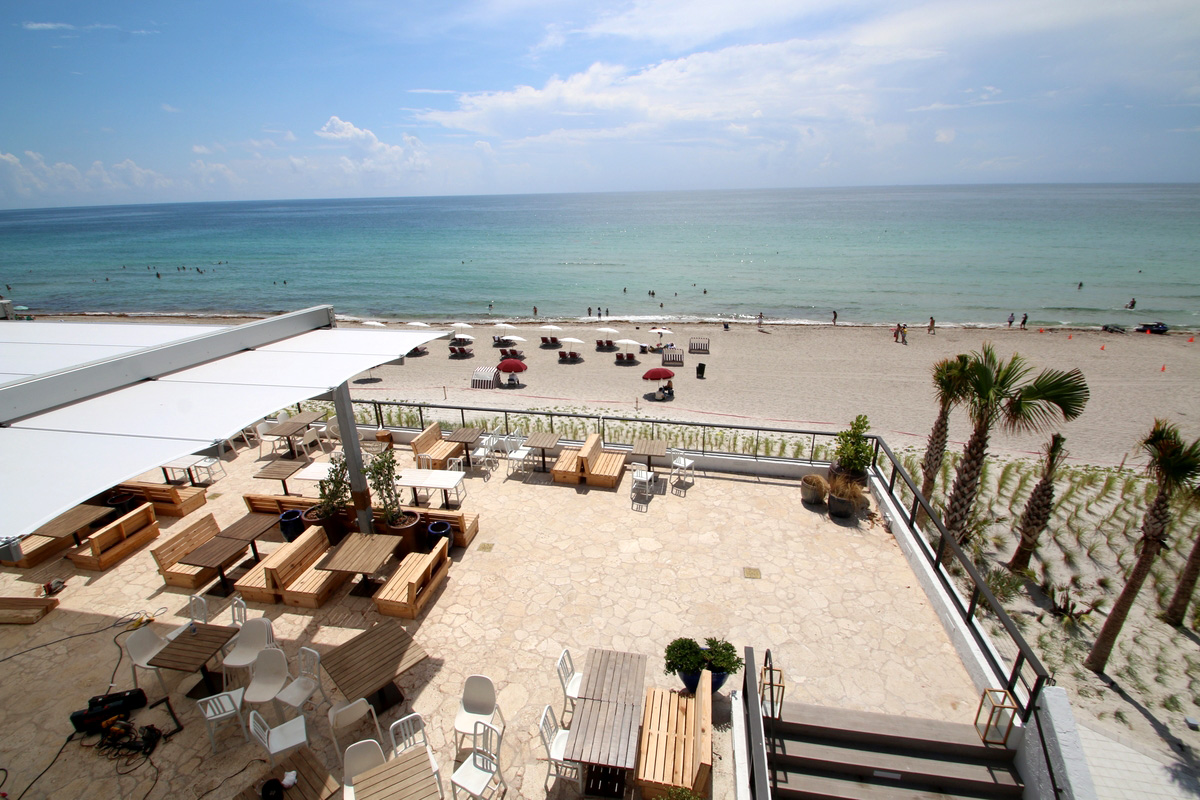

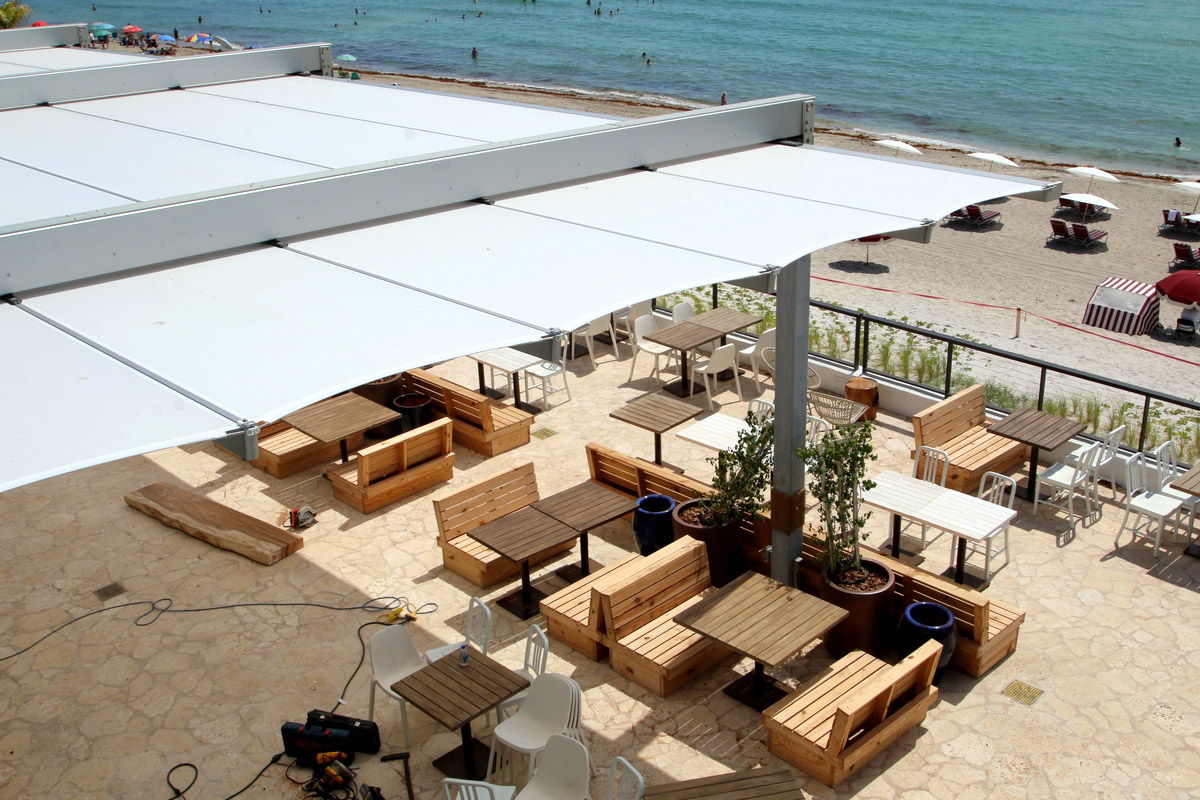

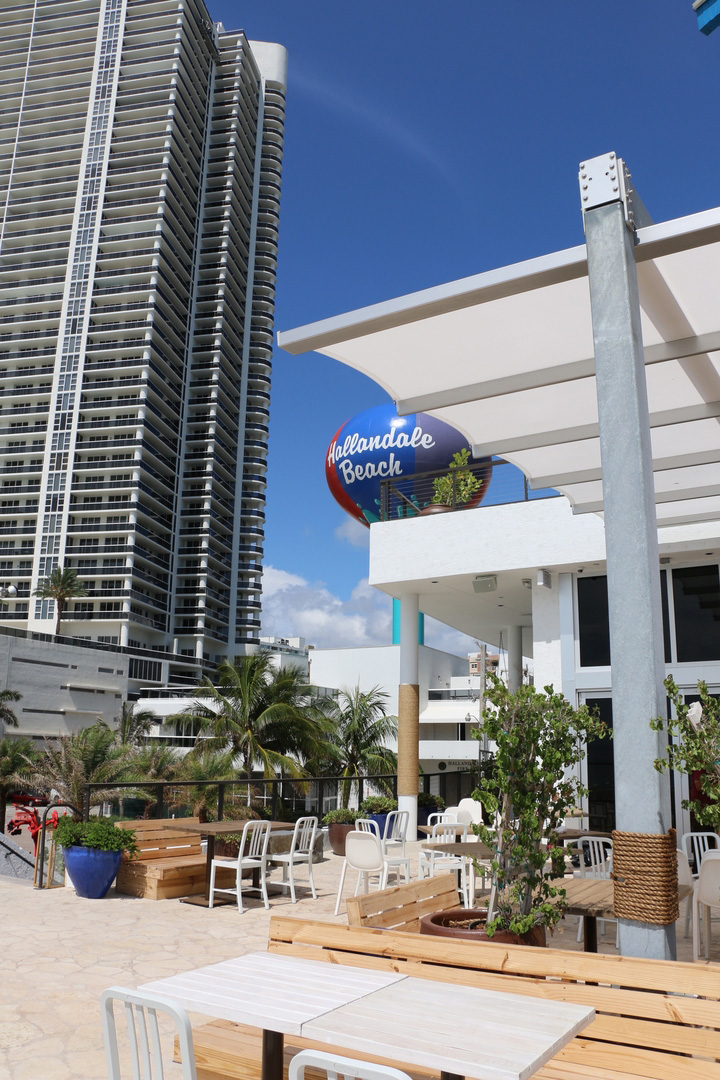

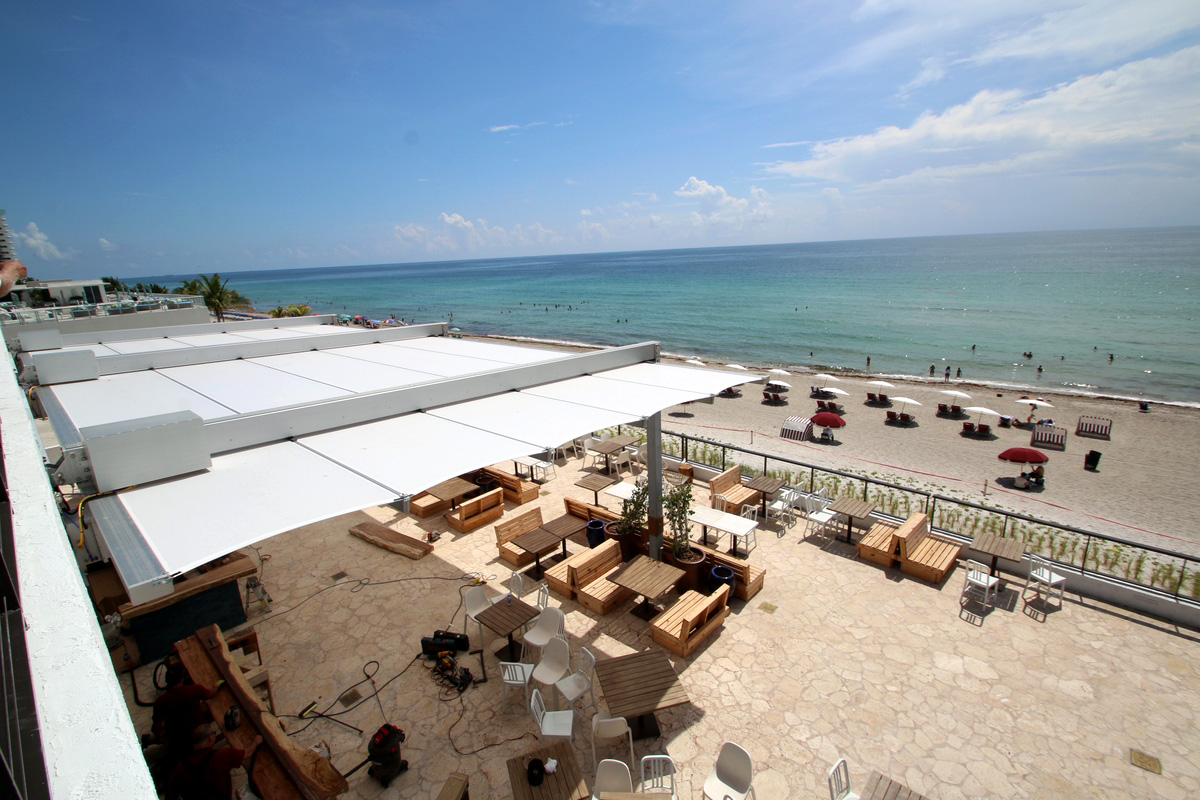

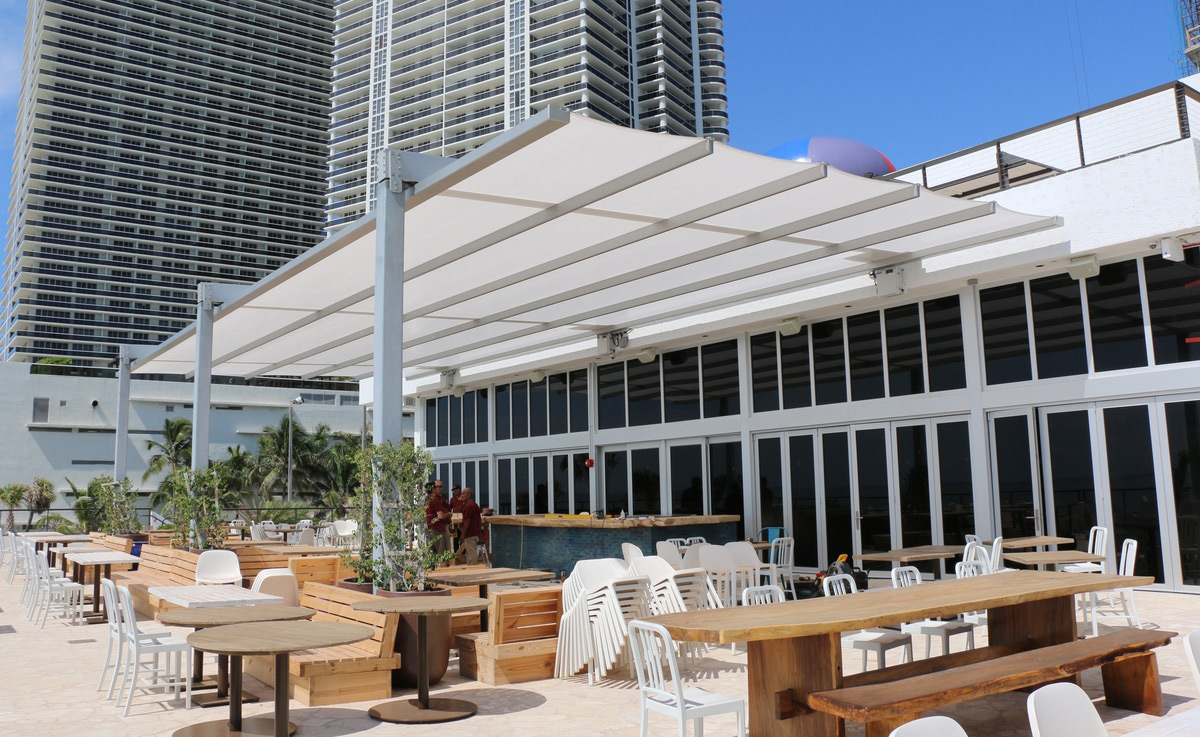

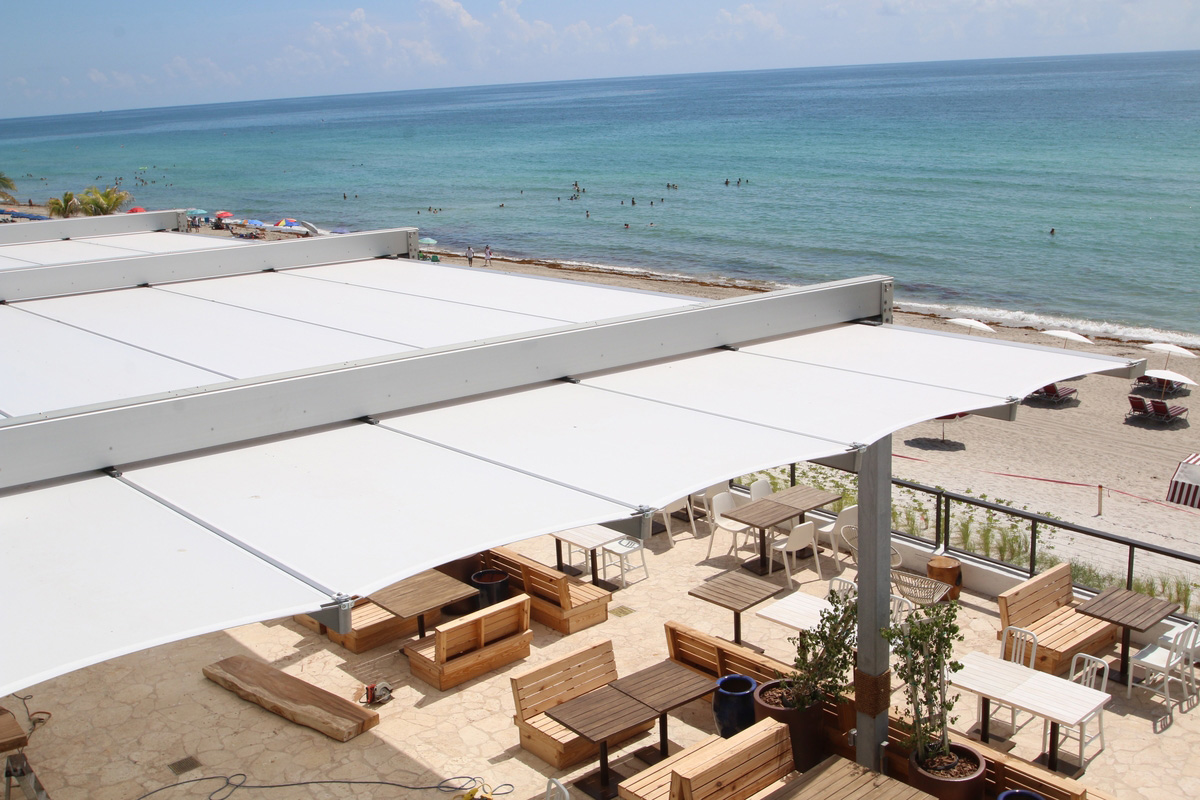

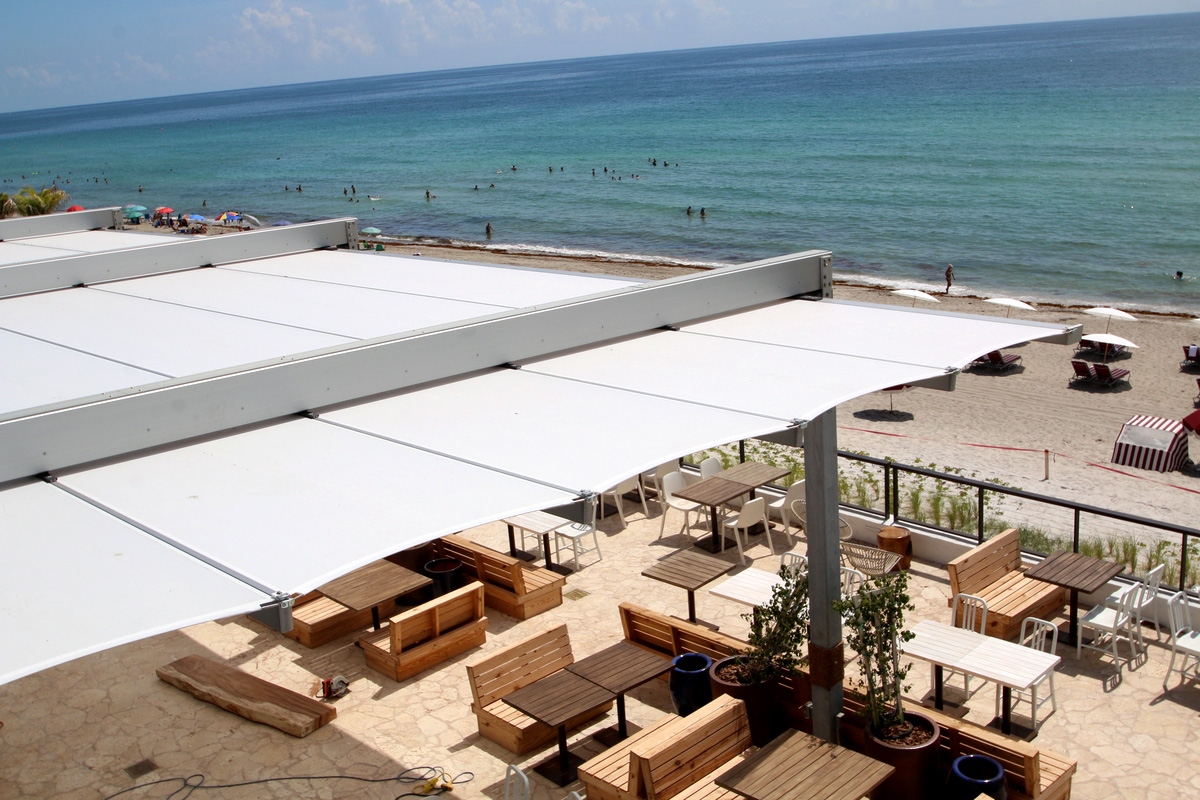

The Beachwalk, a new luxury condominium development at Hallendale Beach, near Miami, needed a protective cover for a terrace that overlooks the Atlantic Ocean. The client requested a 25‐ft‐by‐70‐ft‐wide En-Fold® combination shade/rain canopy for a second floor terrace used by the bar/restaurant at the condo’s private beach club.

The client’s budget and timeframe were extremely tight with special urgency tied to a ceremonial grand opening that would be webcast live as part of a luxury home show. To fit the budget and the compressed construction time, the number of drive beams was reduced from four to three and the width of fabric canopy cut back to 60 ft. Designed for a wind load of 20psf, the canopy has an automated sensor that retracts in case of severe weather.

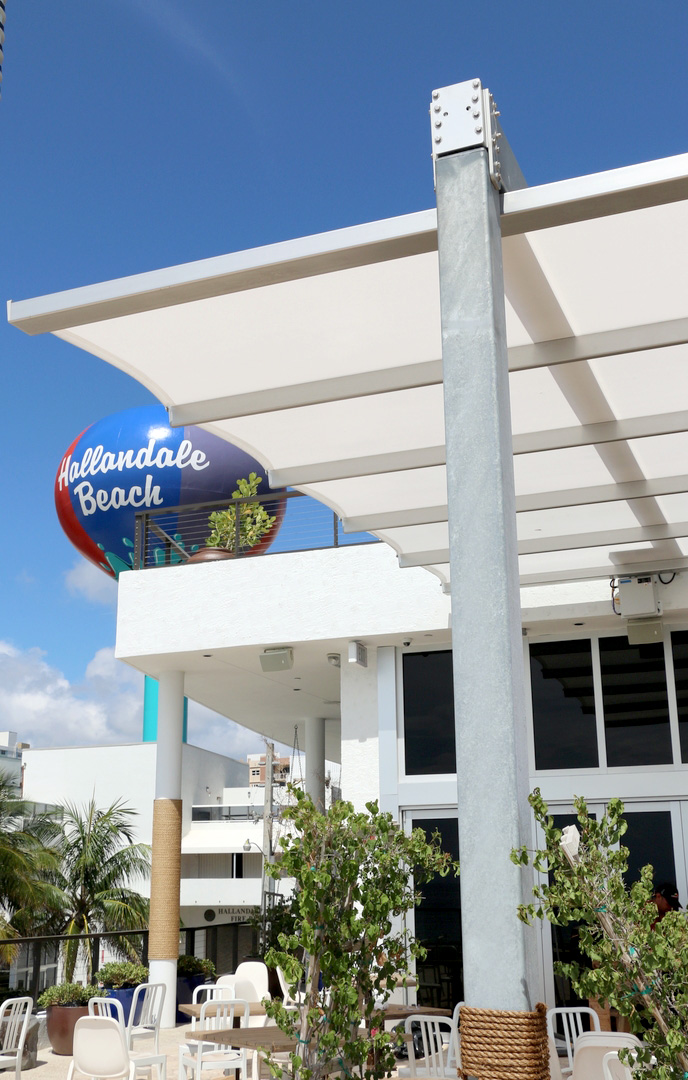

TheEn-Fold® retractable canopy blends beautifully with the clean, modern façade of the South Florida architecture and provides a comfortable, and consistently reliable, climate-protective setting for residents and their guests.

  Back to retractable awning project gallery

Project Information

The Related Group
Completion Date:
Project Scope:
Design, Supply, and Installation Supervision
Engineer of Record:
Lane Structural Engineering
Fabric Fabricator:
Awnings of Hollywood
Steel Fabricator:
Awnings of Hollywood
General Contractor:
HRC Construction Corp.
Plan Area:
1,500‐sq ft
Design Wind Load:
En‐Fold Retractable Canopy:

Extension 25 ft

Width: 60-ft

Number of drive beams: 3

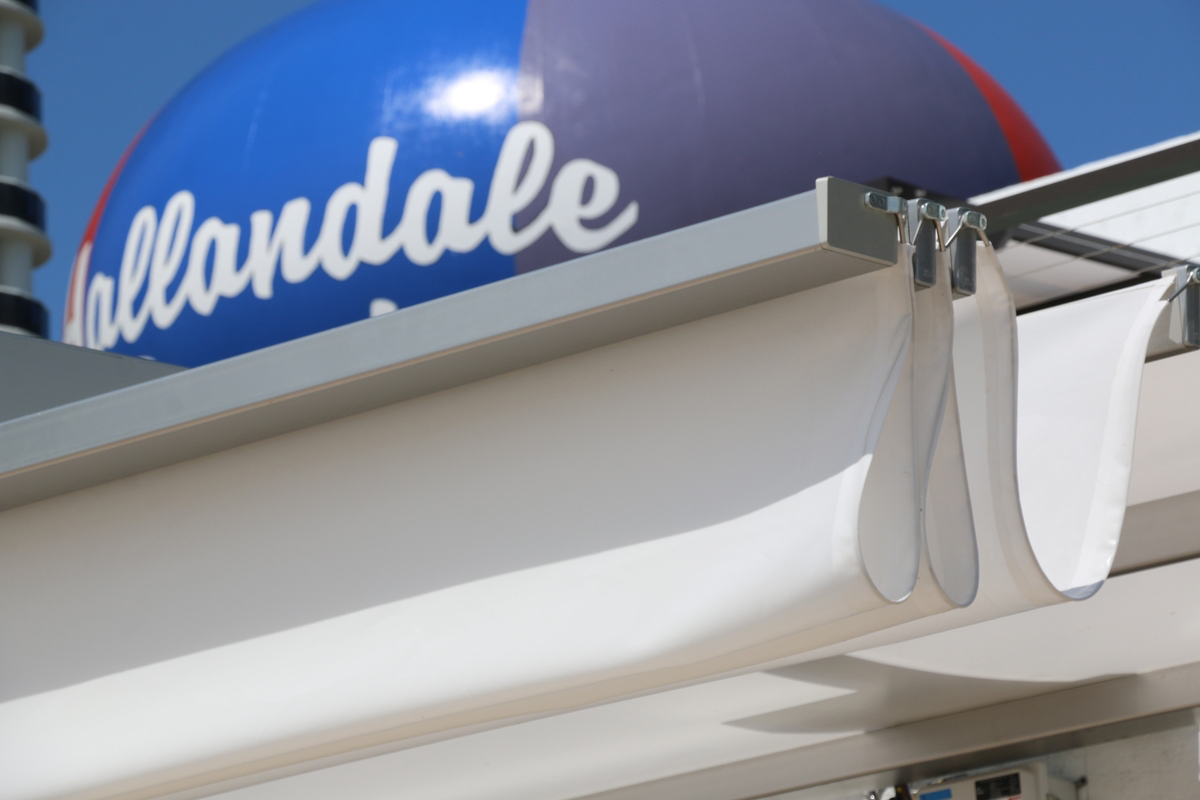

Fabric: Sefar Tenara® 4T40
